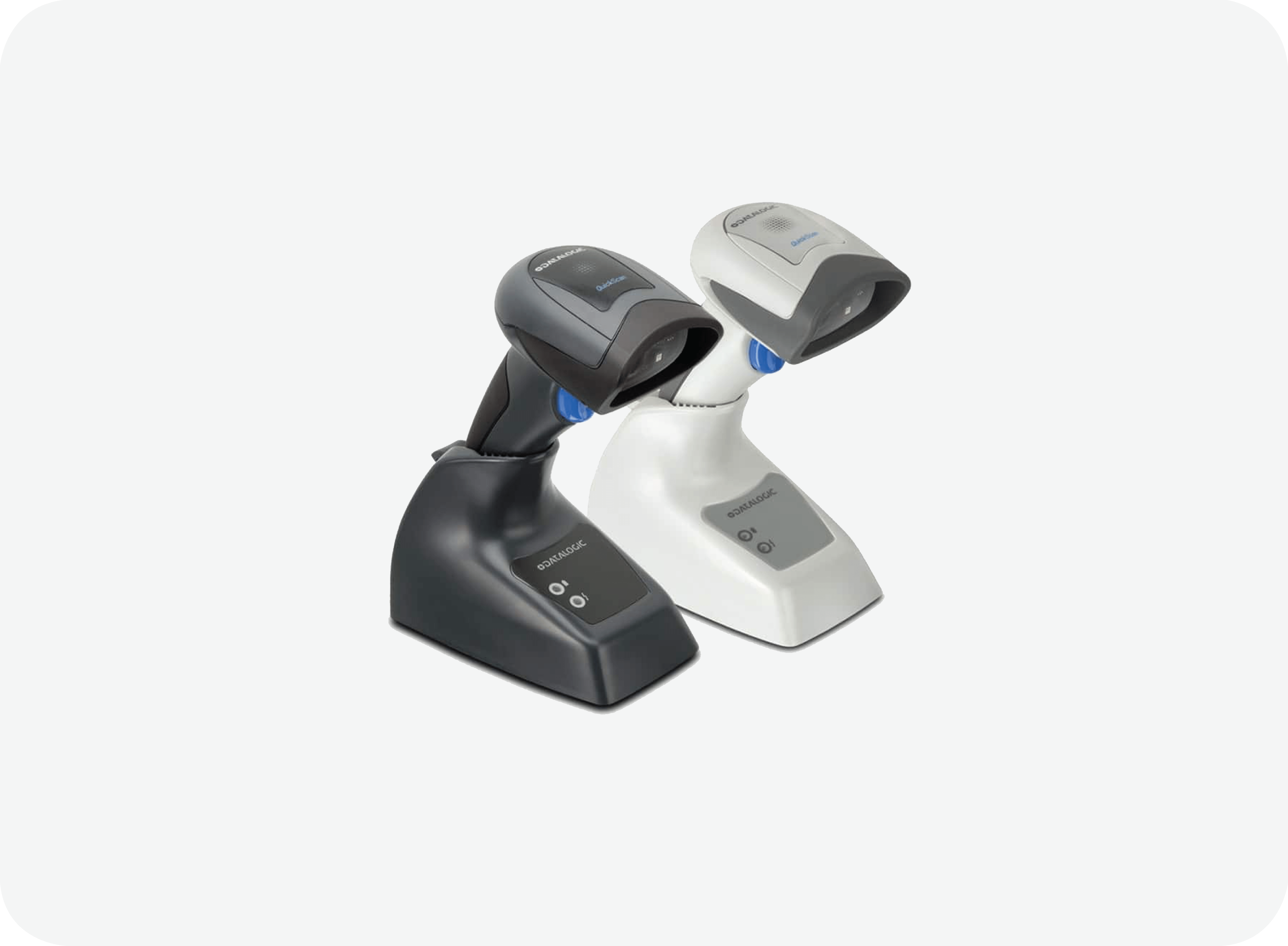

Ideally suited for applications at the point-of-sale (POS), the QuickScan QBT2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code.
The result is a precise aiming system which contributes to low eye fatigue, yet still allows top operator efficiency. The reader also features Datalogic’s patented ‘Green Spot’ technology for additional good read confirmation by placing a green spot directly on the code.
SPECIFICATION OF QuickScan QBT2400
|BLUETOOTH WIRELESS TECHNOLOGY||Piconet: Max. Readers per Radio Receiver Using Commercial Dongle: 7; Using Cradle: 1|
|PROFILES||HID (Human Interface Device)SPP (Serial Port Profile|
|PROTOCOL||Bluetooth 3.0 Certified Class 2|
|RADIO FREQUENCY||2.4 GHz|
|RADIO RANGE (OPEN AIR)||25.0 m / 76.2 ft Range distances are measured using the base station. Range with connection to other Bluetooth peripherals may show different results.|
|SECURITY||Data Encryption; Scanner Authentication|
|BATTERY||Battery Type: Lithium-Ion 1400 mAh Charge Time: External Power: < 3 hrs @ 12 VDC;Reads per Charge: 30,000 +|
|INPUT VOLTAGE||4.75 - 14 VDC|
|INTERFACES||Keyboard Wedge / OEM (IBM) USB / RS-232 /USB|
|COLORS AVAILABLE||Black, White|
|DIMENSIONS||16.3 x 9.1 x 4.1 cm / 6.4 x 3.6 x 1.6 in|
|WEIGHT||Reader: 200 g / 7.1 ozBase/Charger: 230 g / 8.1 oz|
|WARRANTY||3-Year Factory Warranty|
