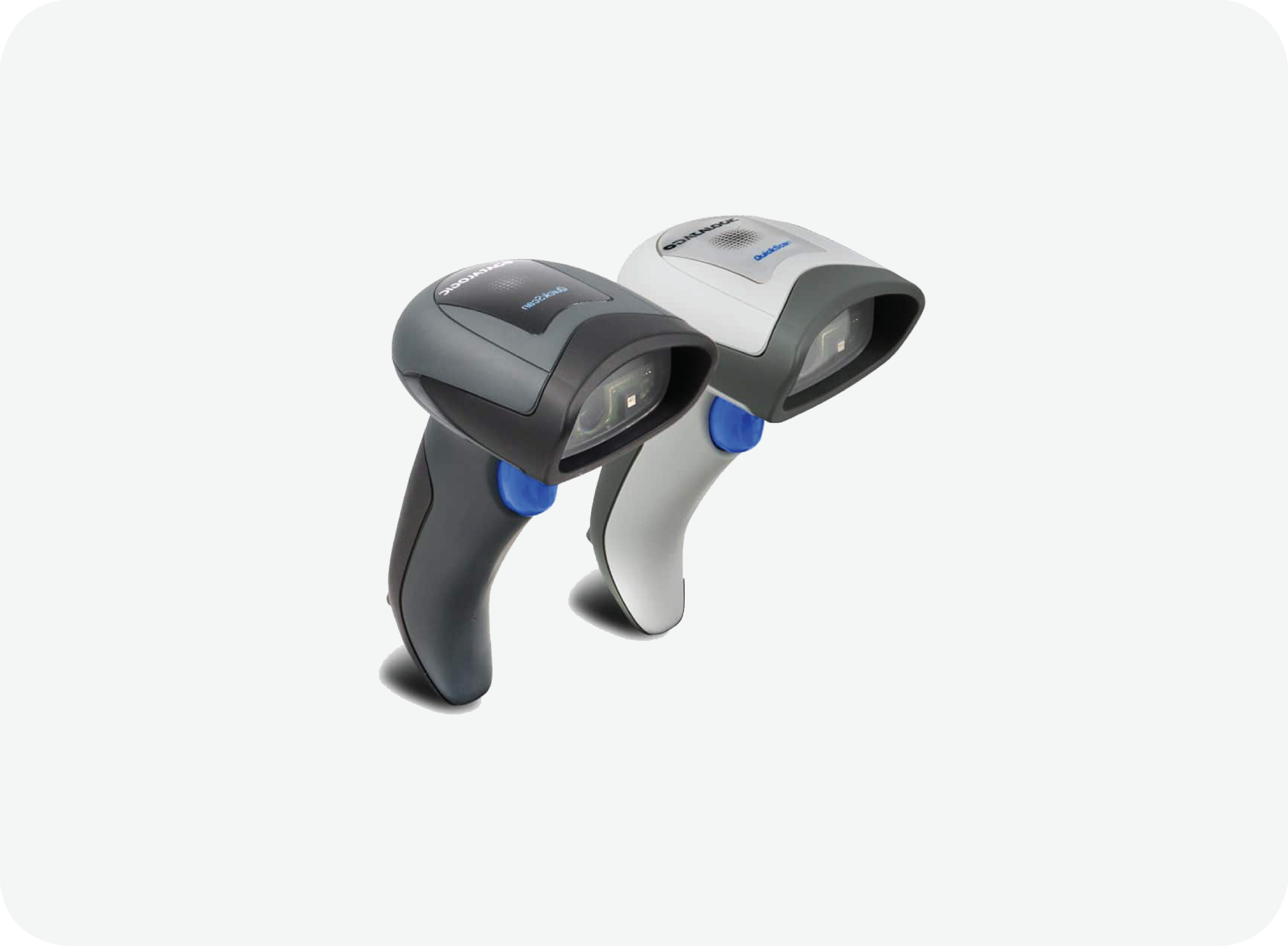

Datalogic ADC is pleased to announce the release of the QuickScan™ QD2131 linear imager with an enhanced decoding algorithm enabling the imager to capture and decode 1D bar codes more quickly.
The QD2131 linear imager has an extra-wide field of view and an extra-long scan line, allowing users to read longer 1D bar codes from a closer distance. Additionally, the QD2131 imager has an extended reading range which exceeds the requirements of most general purpose scanning applications. The QD2131 imager also supports the Remote Management functions using the Host Download application.
The QuickScan QD2131 imager is the next generation of the QuickScan 2100 series and features an extra-wide field of view and an extra-long scan line which allows users to read longer bar codes from a closer distance. Additionally, the QD2131 imager has an extended reading range which exceeds the requirements of most general purpose scanning applications.The highly visible scan line makes the imager more user-friendly.
The enhanced decoding algorithm enables the QD2131 imager to capture and decode bar codes more quickly
Ideally suited for applications at the point-of-sale (POS), the QuickScan QD2131 imager can also read loyalty cards and codes from a mobile phone screen, which a laser scanner is not capable of doing. This is very useful to meet the needs of emerging mobile marketing applications.
SPECIFICATION OF QuickScan QD2131
|1D / LINEAR CODES||Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes|
|STACKED CODES||EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; UPC A/E Composites|
|CURRENT||Operating (Typical): 140 mA @ 5 VDC;Standby/Idle (Typical): 50 mA @ 5 VDC|
|INPUT VOLTAGE||4.75 - 14 VDC +/-10%|
|AMBIENT LIGHT||0 - 120,000 lux|
|DROP RESISTANCE||Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface|
|ESD PROTECTION (AIR DISCHARGE)||16 kV|
|ESD HUMIDITY (NON-CONDENSING)||90%|
|ESD PARTICULATE AND WATER SEALING||IP42|
|ESD TEMPERATURE||Operating: 0 to 50 °C / 32 to 122 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F|
|ESD INTERFACES||Keyboard Wedge / OEM (IBM) USB / RS-232 / USB|
|ESD COLORS AVAILABLE||Black, White|
|ESD DIMENSIONS||16.3 x 9.1 x 4.1 cm / 6.4 x 3.6 x 1.6 in|
|ESD WEIGHT||Reader: 150 g / 5.3 oz|
|ESD FIELD OF VIEW||56° +/- 2°|
|ESD LIGHT SOURCE||Red LED 610 - 650 nm|
|ESD PRINT CONTRAST RATIO (MINIMUM)||25%|
|ESD READ RATE||400 reads / sec|
|WARRANTY||5-Year Factory Warranty|
