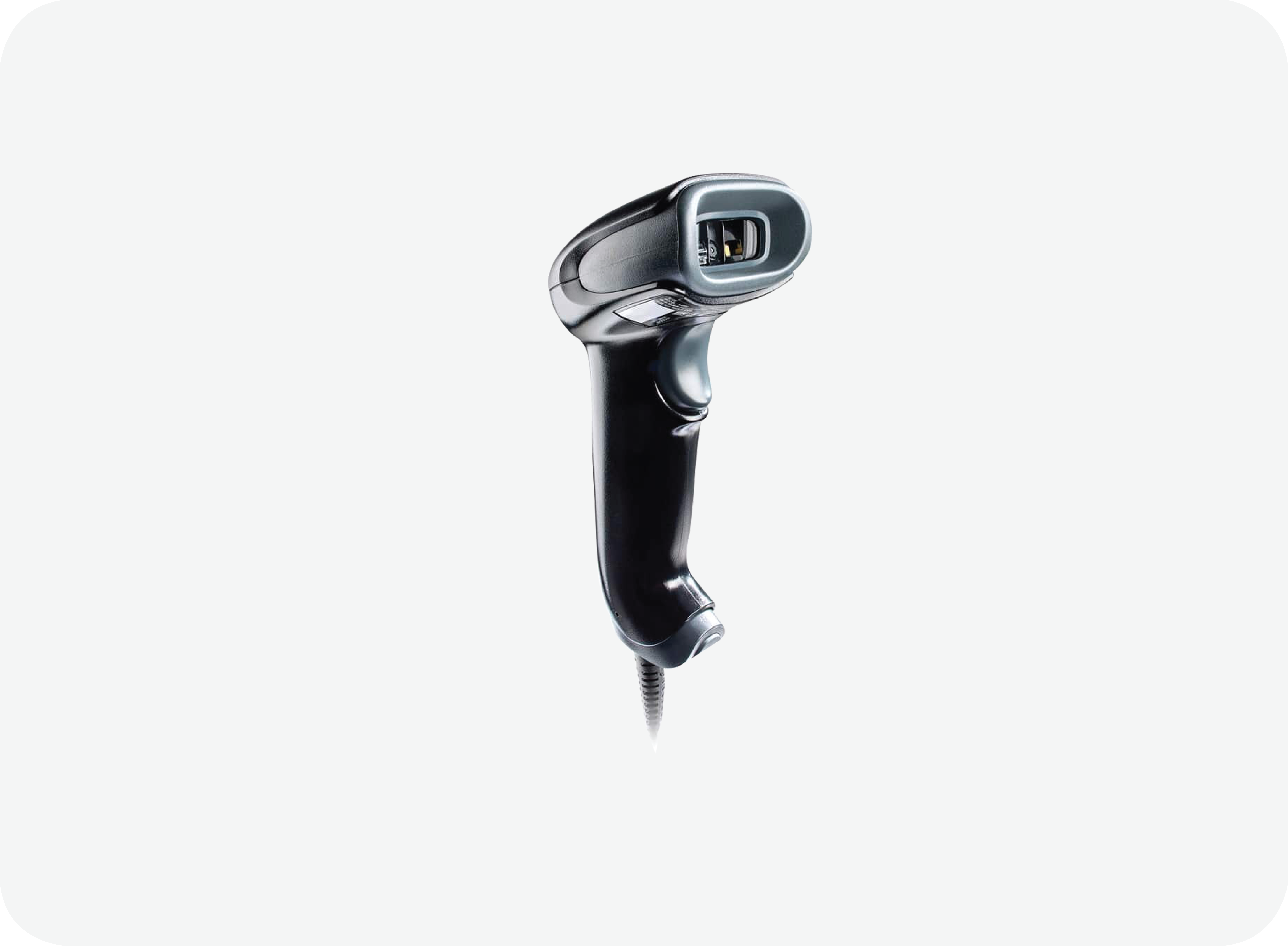

The Voyager 1450g scanner provides omnidirectional reading of linear barcodes, with the ability to affordably upgrade to PDF and 2D barcode scanning at your convenience.
The Voyager™ 1450g scanner allows enterprises to embrace areaimaging at their own pace, and in the most cost-effective manner.
Built on the durable platform of Honeywell's world-renowned Voyager series handheld scanners, the Voyager 1450g scanner delivers omnidirectional reading of linear barcodes, plus the ability to affordably upgrade the device to enable PDF and 2D barcode scanning – either at the time of purchase, or as data capture needs evolve.
SPECIFICATION OF Voyager 1450g
|Dimensions (L x W x H)||62 mm x 169 mm x|
|Weight||130 g (4.6 oz)|
|Input Voltage:||4.0V DC to 5.5V DC|
|Operating Power:||2 W (400 mA @ 5V DC)|
|Standby Power:||0.45 W (90 mA @ 5V DC)|
|Host System Interface||USB, Keyboard Wedge,RS-232, IBM 46xx (RS485)|
|Operating Temperature||0°C to 40°C(32°F to 104°F)|
|Storage Temperature||-40°C to 60°C(-40°F to 140°F)|
|Humidity||Up to 95% relative humidity,non-condensing|
|Drop||Designed to withstand 30 1.5 m (5 ft)drops to concrete|
|Tumble||Designed to withstand 1,000 tumbles from 0.5 m (1.64 ft)|
|Light Levels||0 to 100,000 lux|
|Scan Pattern||Area Image (640 x 480 pixel array)|
|Motion Tolerance||Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus|
|Scan Angle||Horizontal: 37.8°,Vertical: 28.9°|
|Symbol Contrast||35% minimum reflectance difference|
|Pitch, Skew||±60°, ±70°|
|Decode Capability:||1450g1D: All standard 1D symbologies 1450gPDF: All standard 1D and PDF417 symbologies 1450g2D: All standard 1D, PDF417, and 2D symbologies|
|Warranty||5-year factory warranty|
